产品概述

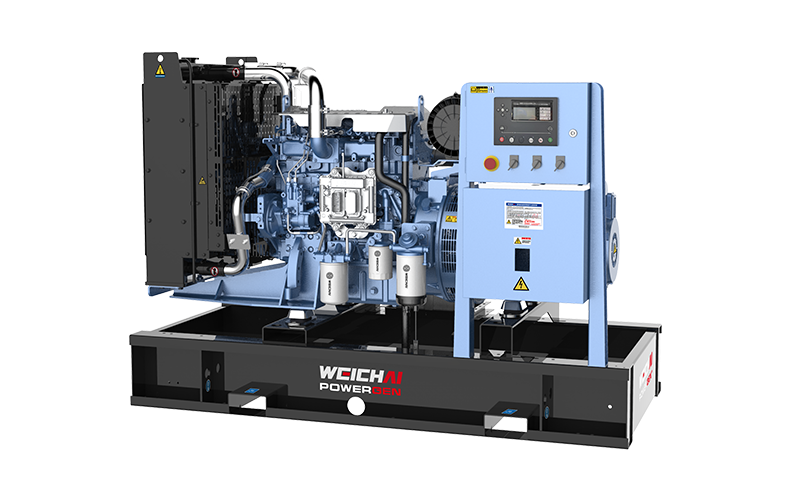

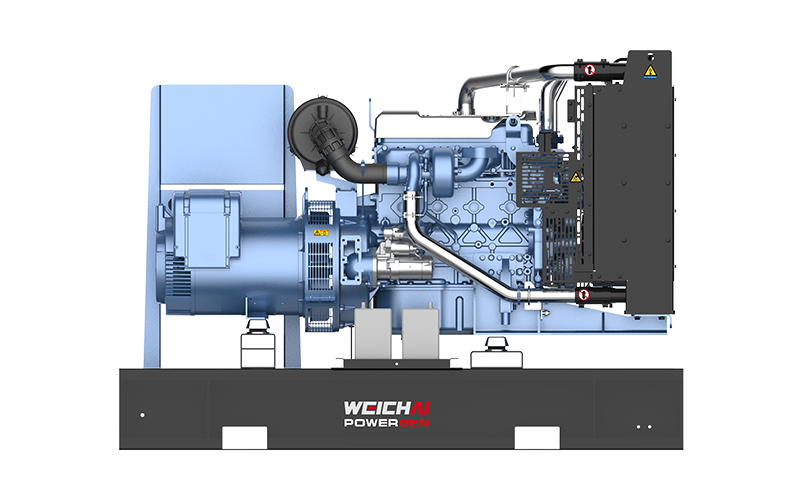

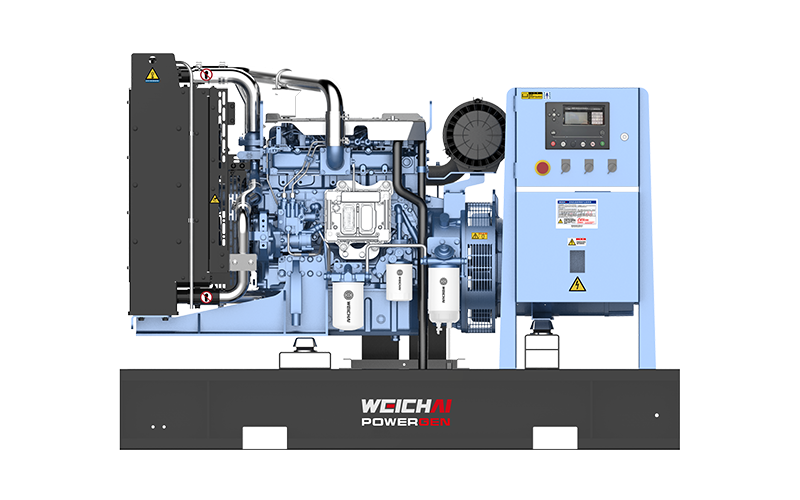

The 68.5-110 kVA series is equipped with the new-generation Weichai WP4.1 engine, featuring high power density, stable power output of 50-88 kW, excellent fuel efficiency, long oil change intervals, and superior economy
产品优势
Fuel System: High injection pressure ensures high engine power and excellent fuel atomization for superior fuel economy
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Baudouin Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG70L1 |
1500 |
70/55 |
63/50 |
4M10G2D3/5 |
4 |
105×118 |
Electronic control |
Stage IIIA |
|
WPG88L1 |
1500 |
88/70 |
80/64 |
4M10G4D3/5 |
4 |
105×118 |
Electronic control |
Stage IIIA |
|
WPG110L1 |
1500 |
110/88 |
100/80 |
4M10G6D3/5 |
4 |
105×118 |
Electronic control |
Stage IIIA |
