WEICHAI

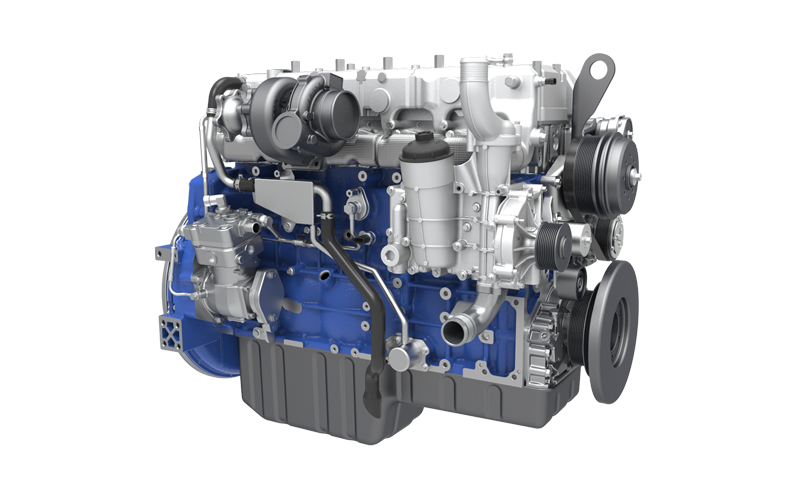

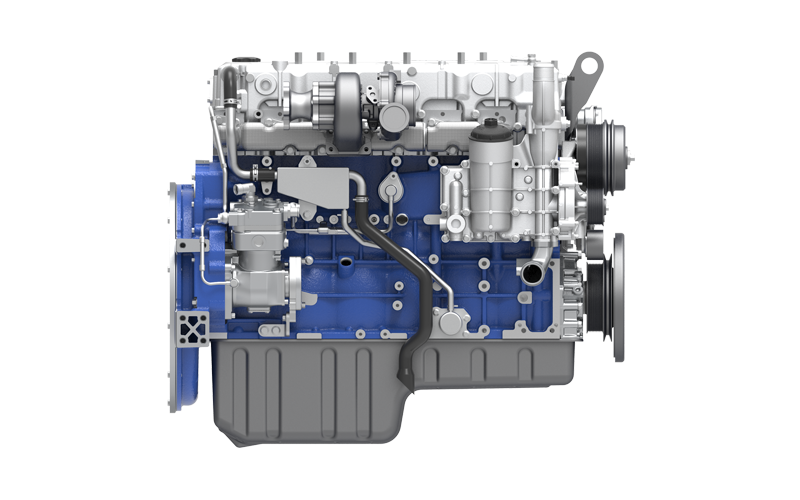

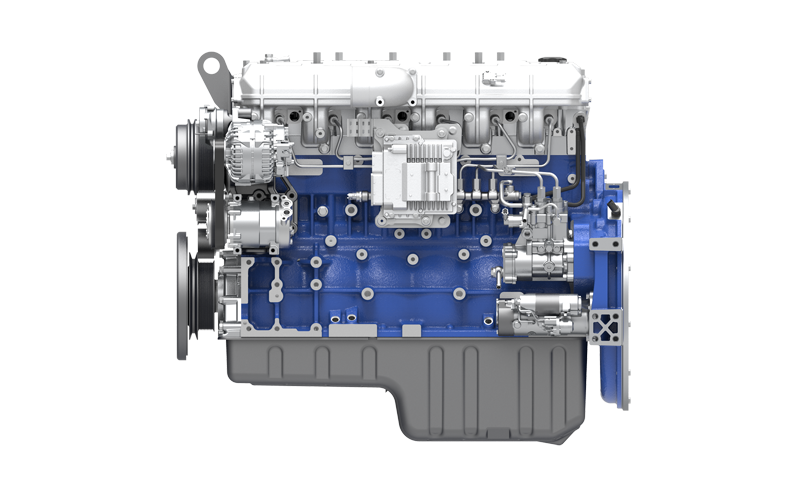

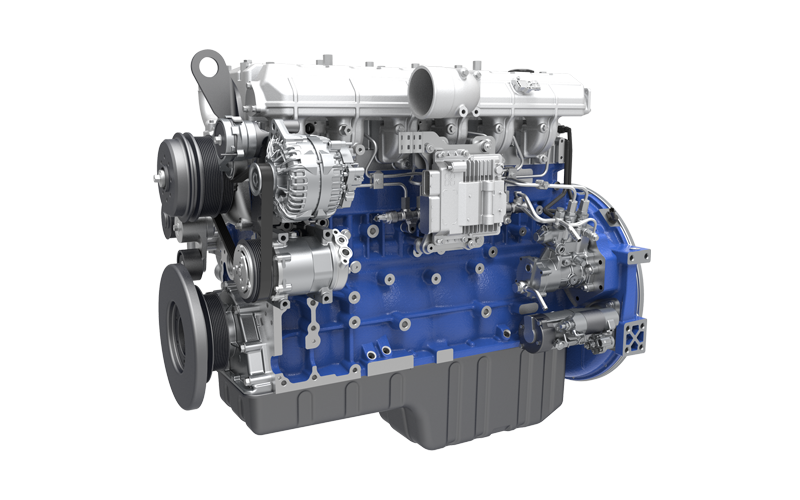

WP8 Engine for Tractor

Adapted for 260–300 PS wheeled tractors.

213-240/290-330

功率范围 kW/Ps

1400/1400-1600

最大扭矩/转速 N·m / r/min

产品概述

The Weichai WP8 is a displacement upgrade of the WP7. This tractor engine provides stable power output and strong adaptability, with a mature architecture ensuring high reliability across various tractor horsepower segments.

产品优势

Power Performance: With a 7.8L displacement and power ranging from 213 to 240 kW, it utilizes turbocharging and intercooling technology. It features high low-speed torque and smooth power response with sufficient torque reserve, easily handling heavy-duty tasks such as plowing, sowing, and harvesting with outstanding anti-bogging capability.

Economy: Equipped with a mature electronically controlled high-pressure common rail system, it offers precise fuel injection and high combustion efficiency to effectively reduce fuel consumption; The lightweight design of the engine further reduces tractor power loss and enhances fuel economy.

Reliability: Built on Weichai’s mature engine architecture, its core components have been long-validated in the market, ensuring a low failure rate. It is designed for harsh agricultural conditions such as dust and mud, with convenient daily maintenance and low service costs.

产品规格

功率范围 kW/Ps
213-240/290-330
最大扭矩转速 N·m / r/min
1400/1400-1600
排放标准
EU Stage IIIA
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
7.8
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1455×729×1526
G重量 kg
1000

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP8G290E302

213/2100

1260/1400-1600

7.8

EU Stage IIIA

CR

Tractor

4

WP8G310E302

228/2100

1360/1400-1600

7.8

EU Stage IIIA

CR

Tractor

4

WP8G330E302

240/2100

1400/1400-1600

7.8

EU Stage IIIA

CR

Tractor

4
