产品概述

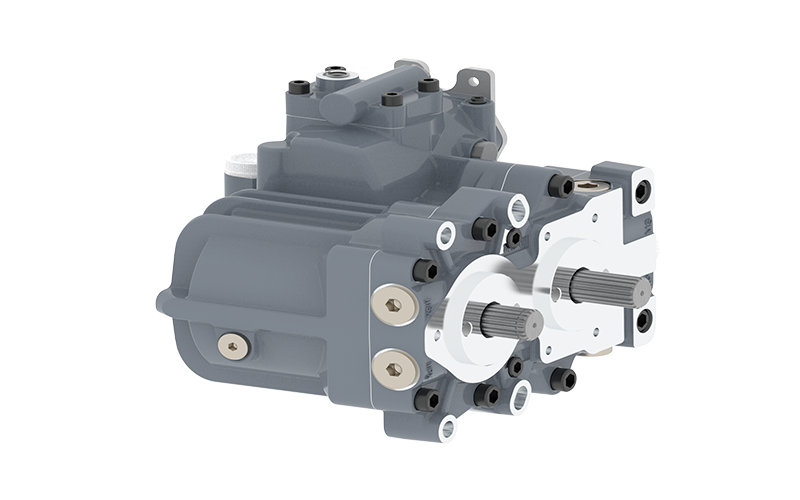

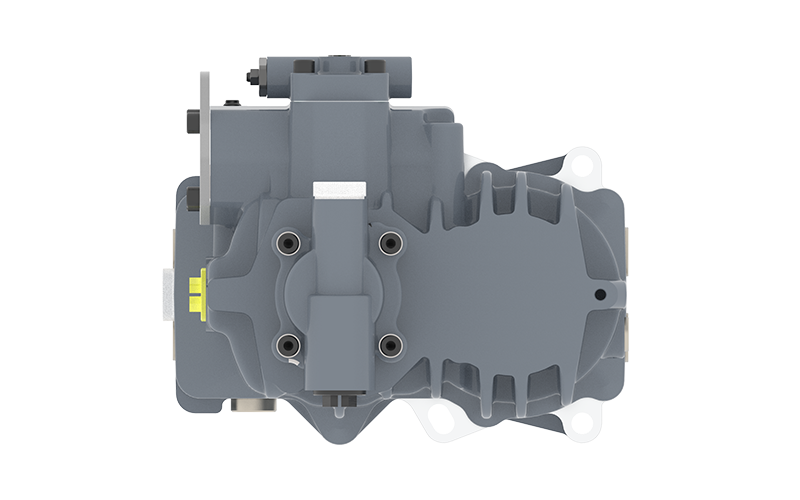

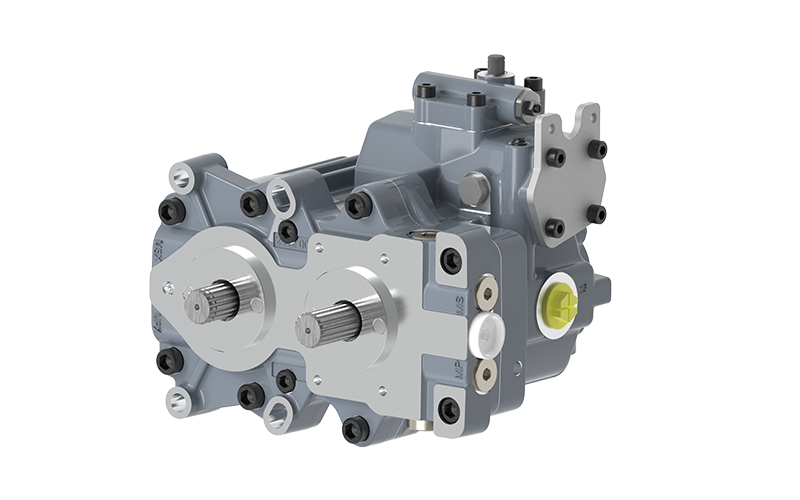

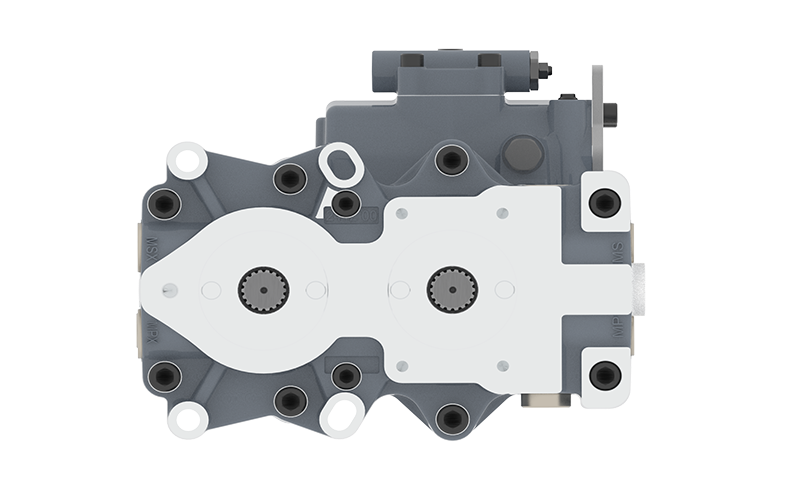

U Series integrated units are designed for closed-loop systems. Developed specifically for rice harvesters, this product leverages mature technology from the 02 series; through a parallel pump-motor arrangement, it significantly reduces the overall footprint while maintaining original performance.
产品优势
Superior low-speed stability.
High power density.
Reliable and easy to maintain.
产品规格
|
Parameter Name |
Value |
|
Specification |
60 |
|
Max. displacement (cc/rev) |
59.7 |
|
Max. operating speed (rpm) |
3000 |
|
Max. operating speed (intermittent) (rpm) |
3200 |
|
Rated pressure (bar) |
380 |
|
Max. pressure (instantaneous) (bar) |
420 |
|
Allowable case pressure (bar) |
2.5 |
|
Torque at rated pressure (N·m) |
361 |
|
Theoretical power (kW) |
113 |
|
Weight (approx.) (kg) |
42.7 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
