WEICHAI

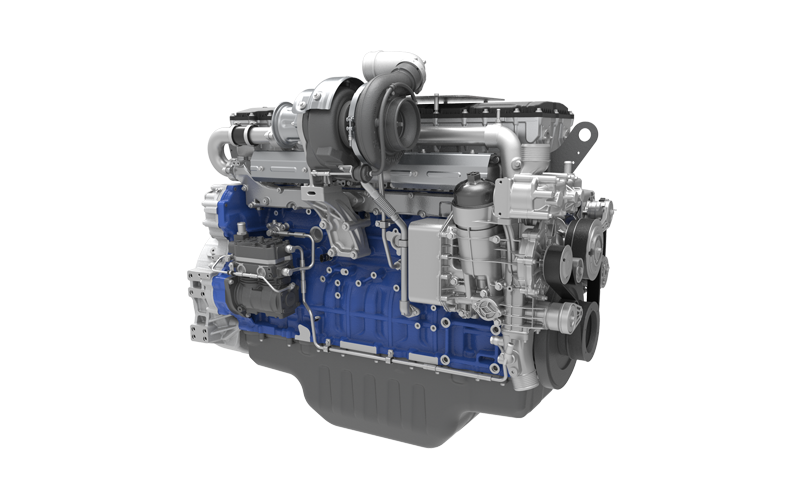

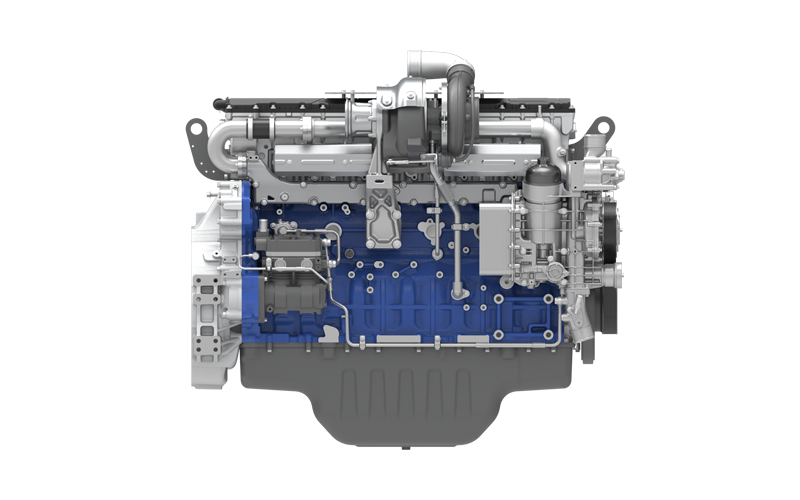

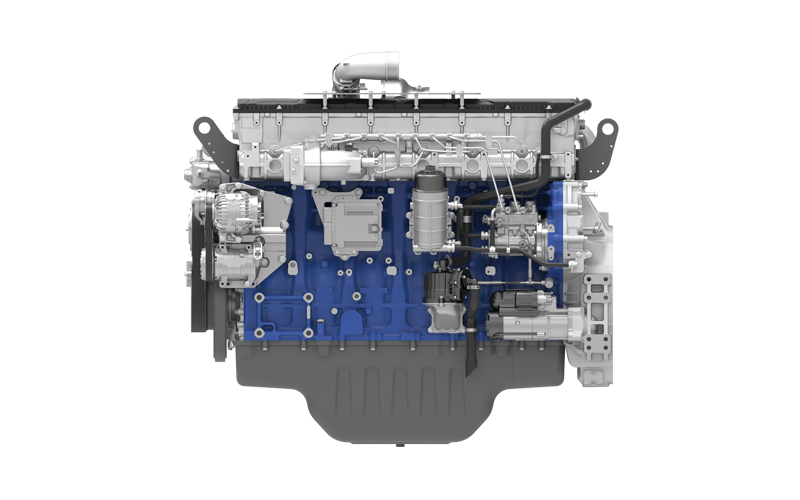

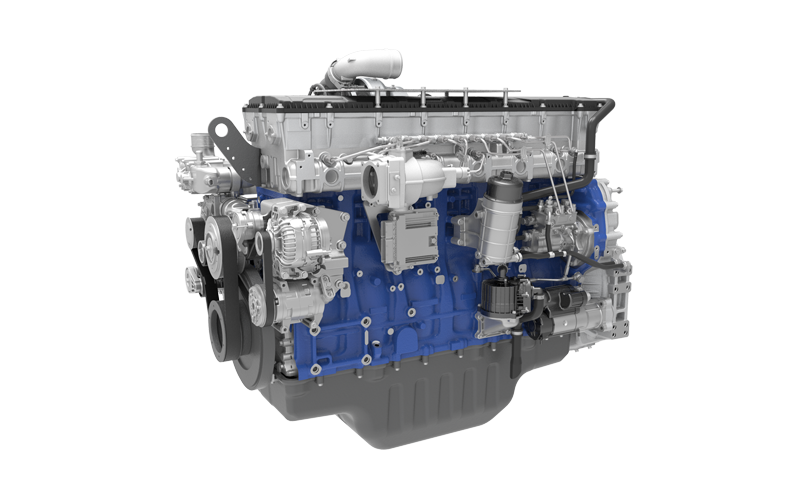

WP17T Engine for Tractor

Adapted for 500–600 PS tractors.

404-478/550-650

功率范围 kW/Ps

3000/1100-1600

最大扭矩/转速 N·m / r/min

产品概述

The WP17T offers a power range of 550–650 PS, complies with non-road EU Stage IIIA emission standards, and is suitable for high-horsepower heavy-duty tractors.

产品优势

Ultimate Power, Stable Performance Under Heavy Loads: High torque at low engine speeds, delivering a peak torque of 3000 N·m between 1100–1600 rpm.

Significant Annual Fuel Cost Savings: High thermal efficiency (≥51%) combined with efficient combustion results in fuel consumption <170 g/kW·h under common operating conditions, which is 15%+ lower than competing products. Hourly fuel consumption is 3–5 L lower than models with equivalent power, providing significant annual fuel cost savings. 500 h extended oil change interval, resulting in lower maintenance costs.

More Reliable, High Operational Availability: Compacted graphite iron (CGI) reinforced cylinder block/head, crankshaft offset, and low-friction design increase torsional strength by 50%. Fully sealed tensioners and two-stage oil pumps ensure adaptation to dusty, high-temperature, extremely cold, and high-altitude environments. Global supply chain and Weichai casting ensure a B10 lifespan of 30,000+ hours and annual availability of ≥300 days.

Comfortable and Quiet, Leading NVH: Pre-injection technology, rear-mounted gear train, and full-suspension vibration isolation result in noise levels 2–4 dB(A) lower than competing products. Reduced vibration minimizes fatigue during long hours of operation, making it ideal for high-end intelligent/CVT models.

产品规格

功率范围 kW/Ps
404-478/550-650
最大扭矩转速 N·m / r/min
3000/1100-1600
排放标准
EU Stage IIIA
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
16.6
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1535×1242×724
G重量 kg
1430

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP17TG550E304

404/1900

2550/1400-1500

16.6

EU Stage IIIA

CR

Tractor

4

WP17TG600E304

441/1900

2800/1300-1500

16.6

EU Stage IIIA

CR

Tractor

4

WP17TG650E304

478/1900

3000/1100-1600

16.6

EU Stage IIIA

CR

Tractor

4
