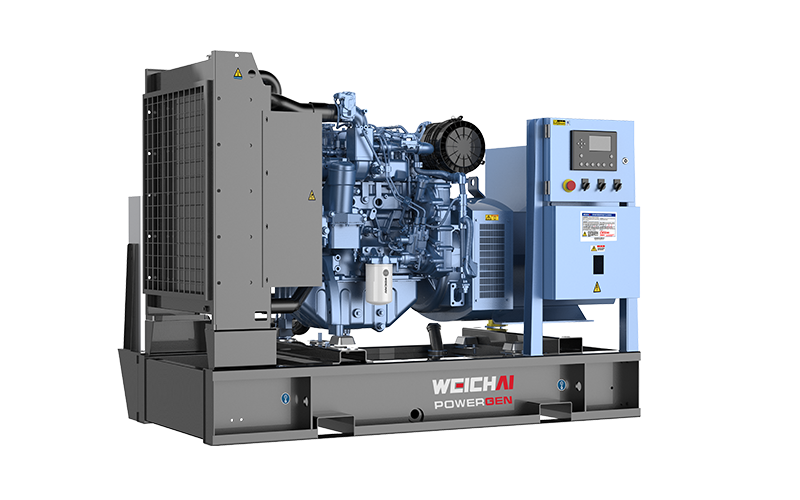

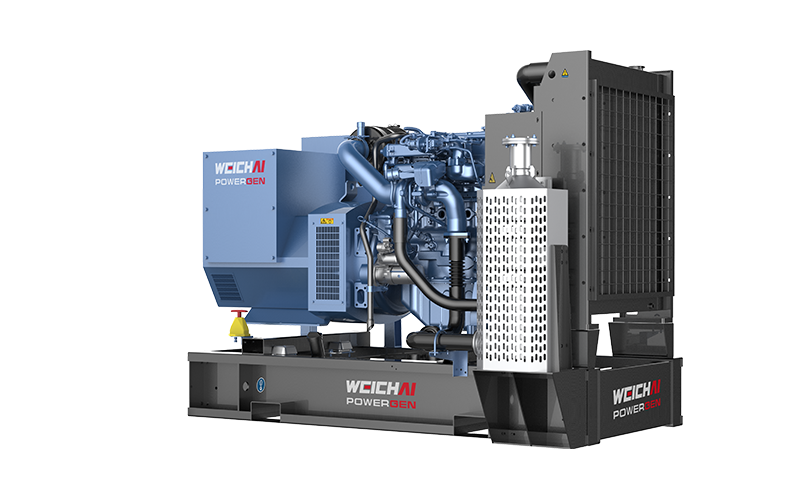

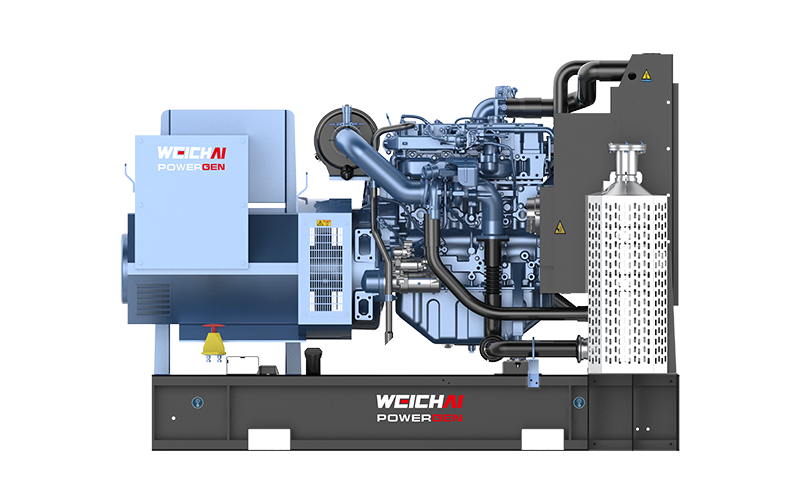

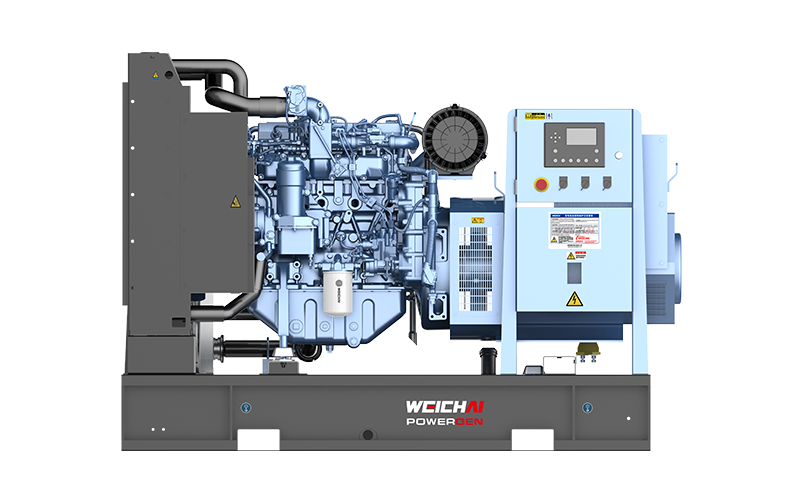

125 kVA-165 kVA Standard Land-based Generator Set Series

Suitable for telecommunications, industrial warehousing, real estate, and public utilities

100-132

功率范围/持续功率

Soundproofed

结构形式

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Energy & Power/Generator Set/Diesel/Stage IIIA

概述优势规格型谱表

产品概述

The 125-165 kVA series is equipped with the new-generation Weichai WP4.6N engine, featuring strong power performance and high power density with a range of 100-132 kW, while maintaining the advantages of high reliability, durability, and superior economy.

产品优势

Fuel System: Electronically controlled high-pressure common rail (HPCR) system delivers high injection pressure for increased engine power and improved fuel atomization, resulting in superior fuel economy; specifically developed electronic control functions for generator set operating conditions meet various control and speed regulation requirements

Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion

Superior NVH Performance: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise

产品规格

功率范围kWe

100-132

产品系列

燃料

Diesel

发动机型式

Inline

气缸数

缸径 × 行程mm

排量 L

4.58

机组尺寸（敞开式）mm

3200 × 1100 × 1850 (Soundproofed)

重量（开式）kg

1790 (Soundproofed)

结构形式

Soundproofed

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Genset Model	Rated speed (rpm)	Standby Power (kVA/kW)	Prime Power (kVA/kW)	Baudouin Engine Model	Cylinders	Bore × Stroke (mm)	Governing System	Emission standard
WPG138L1	1500	138/110	125/100	4M12G2D3/5	4	108×125	Electronic control	Stage III
WPG165L1	1500	165/132	150/120	4M12G4D3/5	4	108×125	Electronic control	Stage III
