产品概述

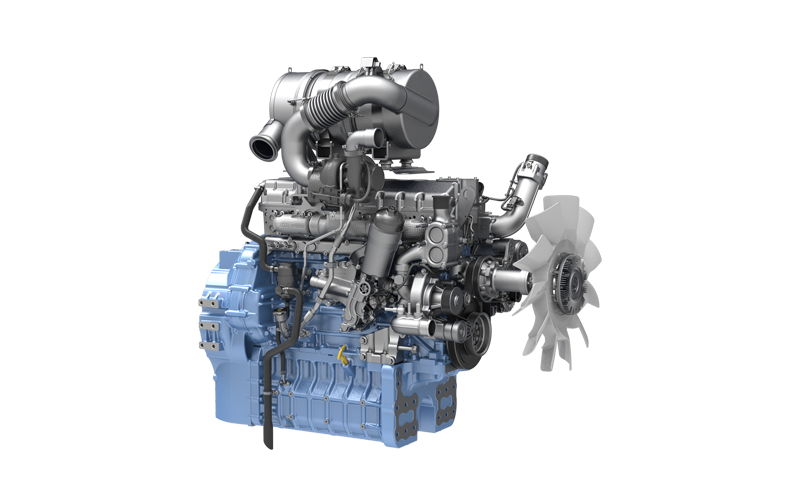

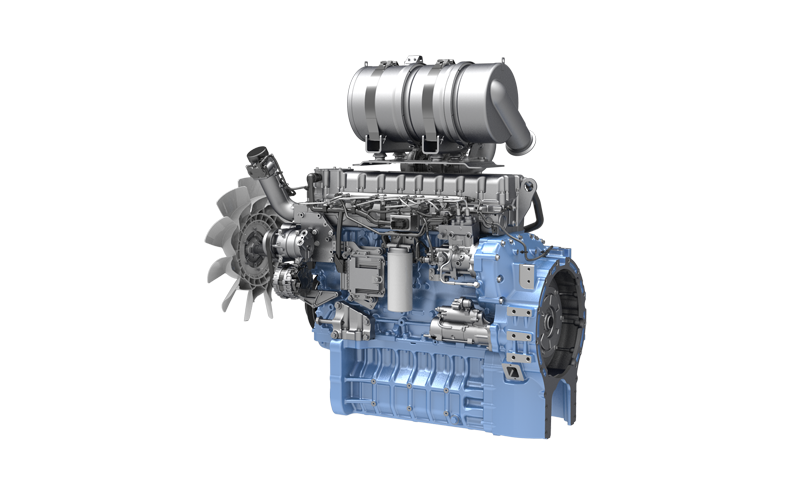

The Weichai WP10H tractor engine features superior power, extreme reliability, and excellent fuel economy.
产品优势
High Power and Torque: Large torque at low engine speeds, reaching maximum torque between 1200–1400 rpm, maintaining speed under heavy loads. Torque reserve >30%, ensuring high efficiency in deep plowing and heavy-load operations. Specific torque reaches 200 N·m/L, superior to competing products in the same class.
Ultimate Fuel Efficiency and Economy: Fuel consumption <190 g/kW·h in typical operating ranges (1000–1400 rpm), 5%–8% lower than competitors. Hourly fuel consumption is over 10% lower than models with equivalent power, providing significant annual fuel cost savings.
Reliable, Durable, and High Operational Availability: Reinforced engine block, cylinder head, and crankshaft, with a B10 lifespan of 30,000 hours. Global supply chain and Weichai's proprietary casting ensure high product consistency. Capable of operating at altitudes up to 4700 meters without power loss; Strong adaptability in cold regions.
Comfortable Operation and Excellent NVH: Rear-mounted gear train, drum-shaped engine block, and reinforced webs result in vibration and noise levels 2–3 dB(A) lower than competing products. Electronic multi-injection control ensures smoother operation and greater operator comfort.
CVT adaptation and intelligent upgrade: specifically developed for high-horsepower CVT tractors, with transmission efficiency >88%. Intelligent control automatically matches load and ground speed, reducing operator fatigue.
产品规格
备注:产品参数及图片仅供参考;如有变动,不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP10HG336E302 |
247/2100 |
1500/1200-1400 |
9.5 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP10HG360E302 |
265/2100 |
1620/1200-1400 |
9.5 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP10HG380E302 |
281/2100 |
1470/1400-1600 |
9.5 |
EU Stage IIIA |
CR |
Tractor |
4 |
