产品概述

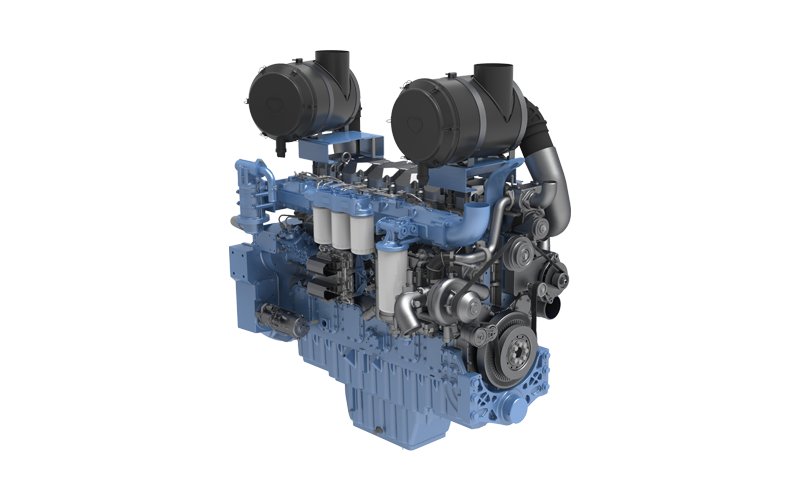

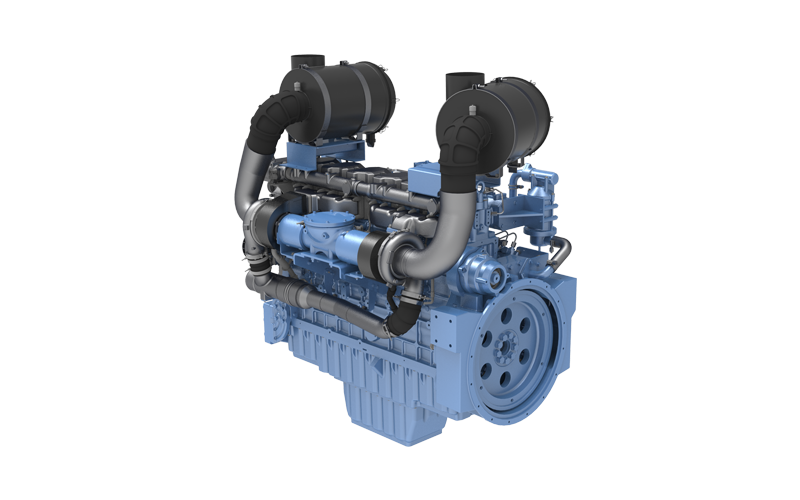

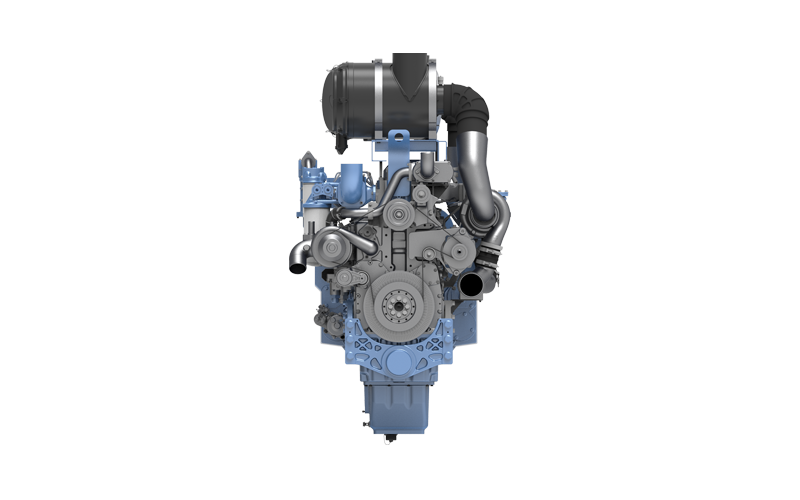

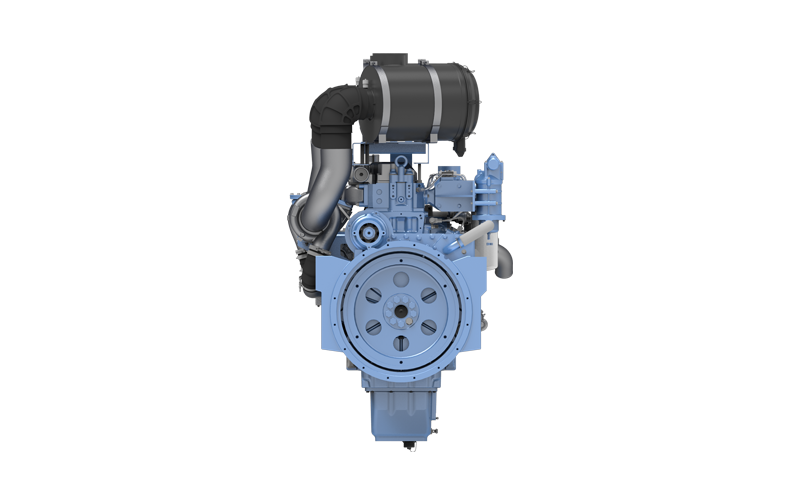

Inline, six-cylinder, four-stroke, turbocharged and intercooled; engine displacement 19.6 L; rated power/speed 566 kW / 2000 rpm, delivering 770Ps, with a maximum torque of 3277 N·m.
产品优势
Inherently robust, ready for challenges: High-strength cast iron cylinder block and integral die-forged alloy steel crankshaft, overhaul interval of 20000 h, and maintenance interval of 500 h.
All-environment, all-competent: Operating ambient temperature of ±50℃, compatible with B40 or higher biodiesel.
Instant response, efficiency-driven: Multi-stage turbocharging enhances transient response and increases explosive power.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
6M33G770E303 |
566/2000 |
3277/1400 |
19.6 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
600Ps motor grader |
4 |
