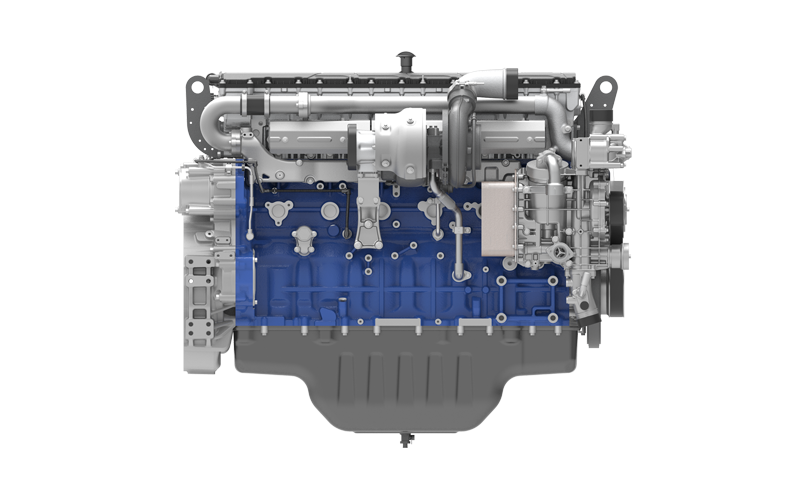

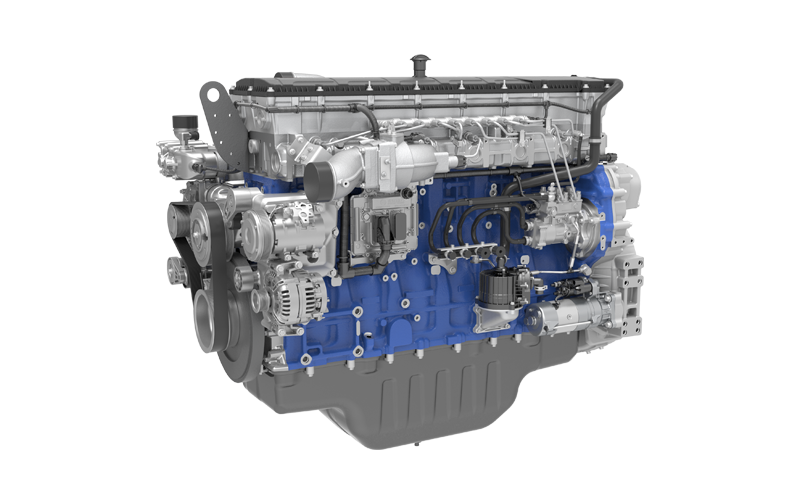

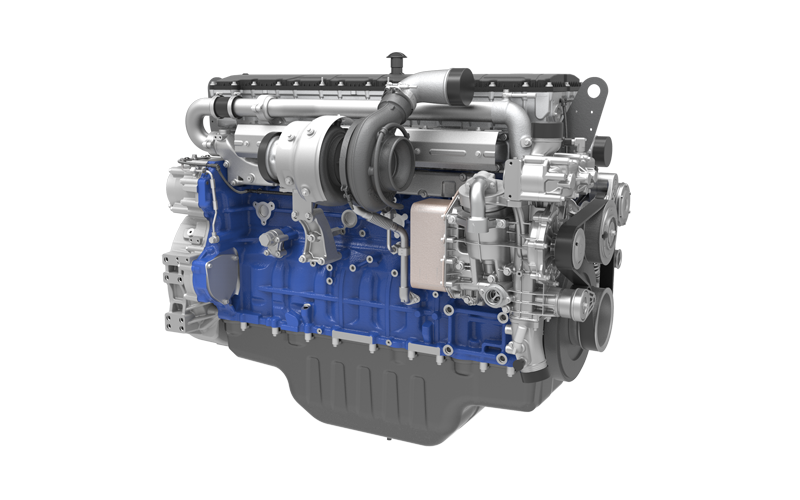

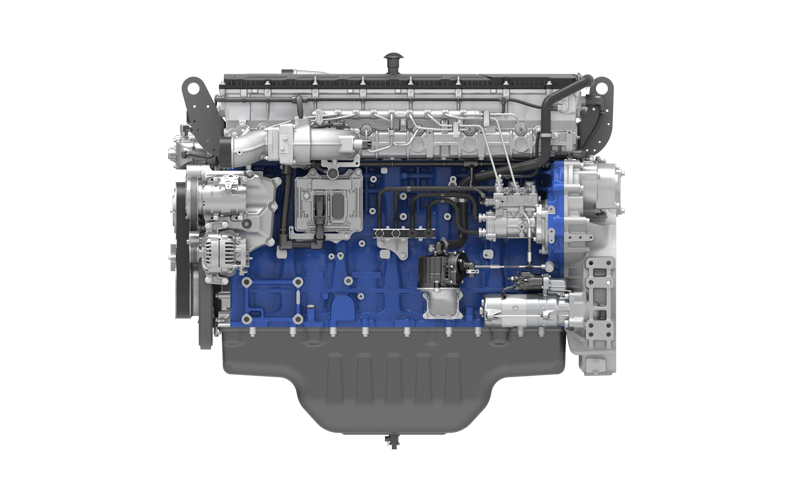

WP17T Engine for Excavator

Adapted for 65–95t excavators

566/770

功率范围 kW/Ps

3300/1200-1600

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Construction Machinery Engine/Engine for Excavator

概述优势规格型谱表

产品概述

The WP17T engine is based on an all-new development platform, tailored as a dedicated mining power solution for 65–95t excavators, positioning it as the core power source for mining extraction and continuous operation scenarios. Superior power and fuel economy; maximum power of 566 kW, compliant with Stage ⅢA emission standards with no aftertreatment system required, while also meeting Stage V emission standards; adapted for 65–95t excavators.

产品优势

Adaptability: Suitable for operation between -35°C and 50°C at altitudes up to 5000 meters, with a 500 h oil change interval, ensuring low operating costs.

Dynamics: Maximum power of 566 kW, maximum torque of 3300 N·m, providing powerful performance and excellent vehicle adaptability.

Reliability: All components have undergone 800 h of durability testing, making the engine suitable for harsh mining conditions.

Maintenance convenience: Adopts a modular and standardized design for easy maintenance and low repair costs.

产品规格

功率范围 kW/Ps

566/770

最大扭矩转速 N·m / r/min

3300/1200-1600

排放标准

Stage ⅢA, EU Stage Ⅴ

燃料

Diesel

发动机型式

In-line

气缸数

气门数

排量 L

16.6

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

1520×1083×1345

G重量 kg

1430

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
WP17TG770E304	566/1900	3300/1200-1600	16.6	Stage ⅢA	CR	65–95t excavator	4
WP17TG770E620	566/1900	3300/1200-1600	16.6	EU Stage V	CR+DOC+DPF+SCR	65–95t excavator	4

WP17T Engine for Excavator

566/770

3300/1200-1600
