WEICHAI

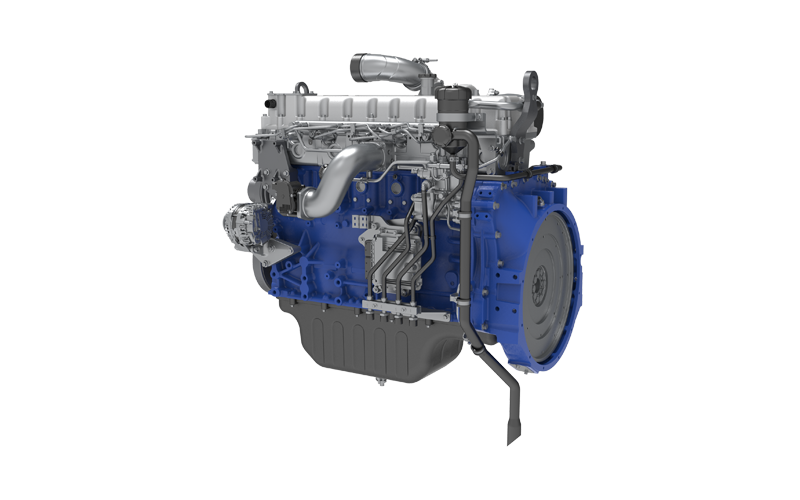

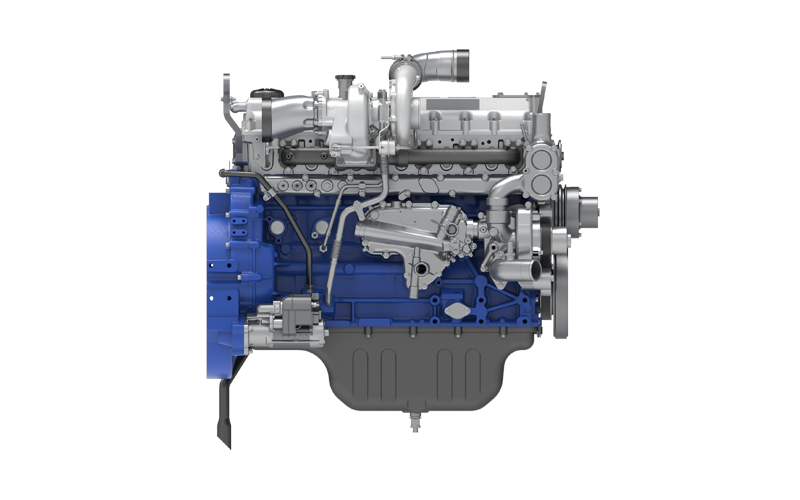

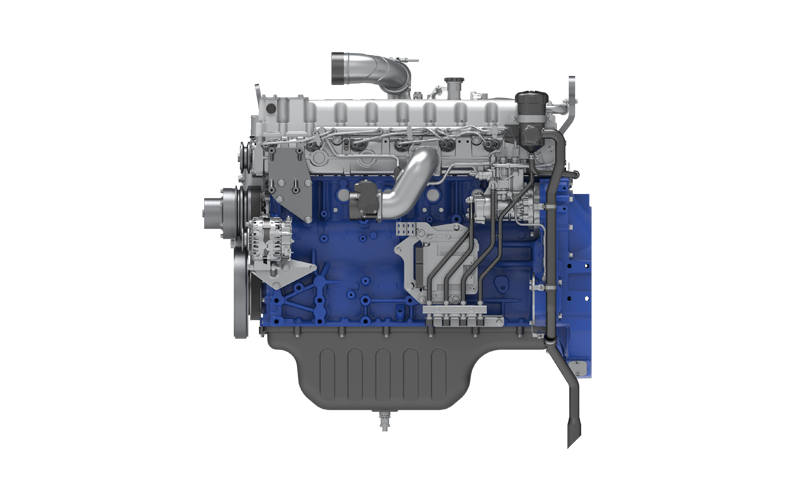

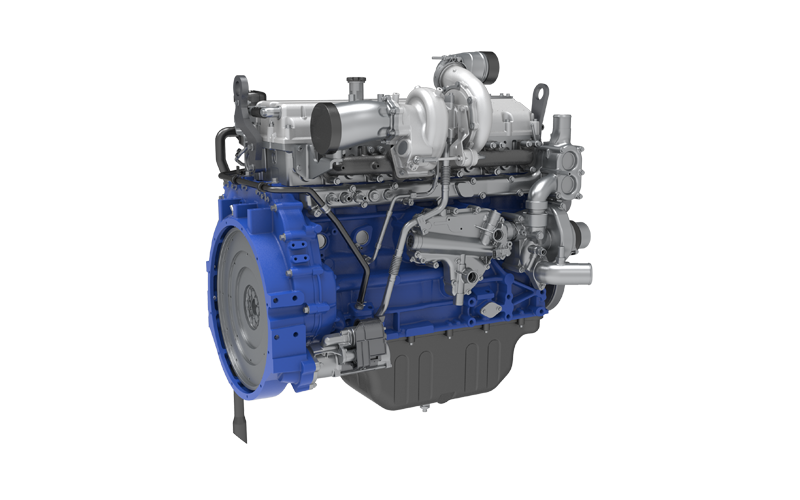

WP10.5H Engine for Excavator

Adapted for 33–45t excavators

247-280/336-380

功率范围 kW/Ps

1720/1300-1500

最大扭矩/转速 N·m / r/min

产品概述

Engine displacement of 10.5L, modular family design, enhanced power and competitiveness, and separate intake and exhaust structure for strong adaptability; Power output ranges from 247 to 280 kW, suitable for 33–45t excavators.

产品优势

Economy: Proprietary ECU calibration strategy + fuel injector + high-efficiency turbocharger combination, with minimum specific fuel consumption 5% lower than competing products.

Adaptability: Suitable for operation between -35°C and 50°C at altitudes up to 5000 meters; modular design with strong scalability.

Comfort: Pilot injection technology and high-precision meshing transmission system ensure minimal vibration and extremely low noise, 2 dB lower than similar competing products.

Power performance: Superior explosive power, with low-speed high torque and idle load capacity exceeding those of similar competing products.

Reliability: High-reliability design with over 20,000 hours of bench testing and high-temperature, high-cold, and high-altitude field testing to ensure engine reliability.

产品规格

功率范围 kW/Ps
247-280/336-380
最大扭矩转速 N·m / r/min
1720/1300-1500
排放标准
EU Stage ⅢA, EU Stage V, MAR-1
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
10.5
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1253×883×1270
G重量 kg
815

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP10.5HG336E300

247/2000

1470/1300-1500

10.5

EU Stage ⅢA, MAR 1

CR

33–35t excavator

4

WP10.5HG355E300

260/2000

1600/1300-1500

10.5

EU Stage ⅢA

CR

37–40t excavator

4

WP10.5HG380E300

280/2000

1720/1300-1500

10.5

EU Stage ⅢA, MAR 1

CR

40–45t excavator

4

WP10.5HG355E670

260/2000

1600/1300-1500

10.5

EU Stage V

DOC+DPF+SCR

33–35t excavator

4

WP10.5HG380E670

280/2000

1720/1300-1500

10.5

EU Stage V

DOC+DPF+SCR

37–45t excavator

4
