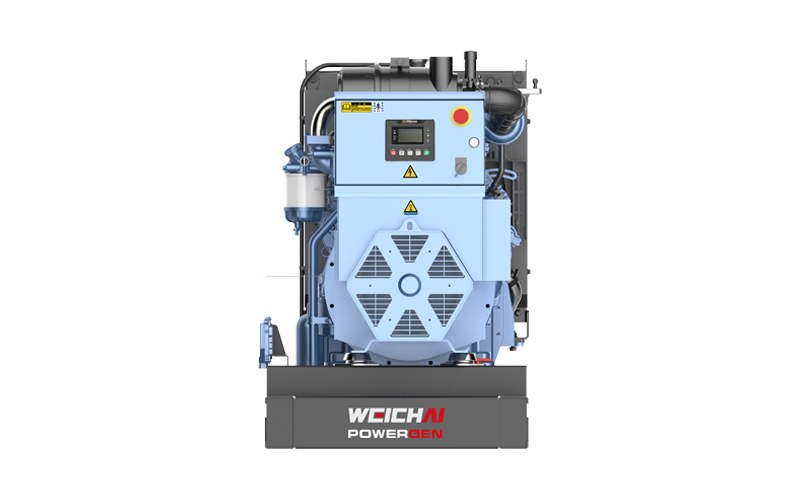

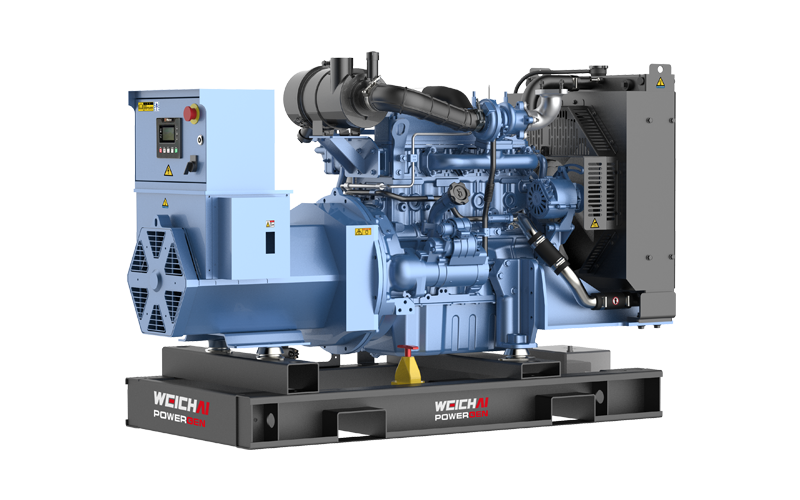

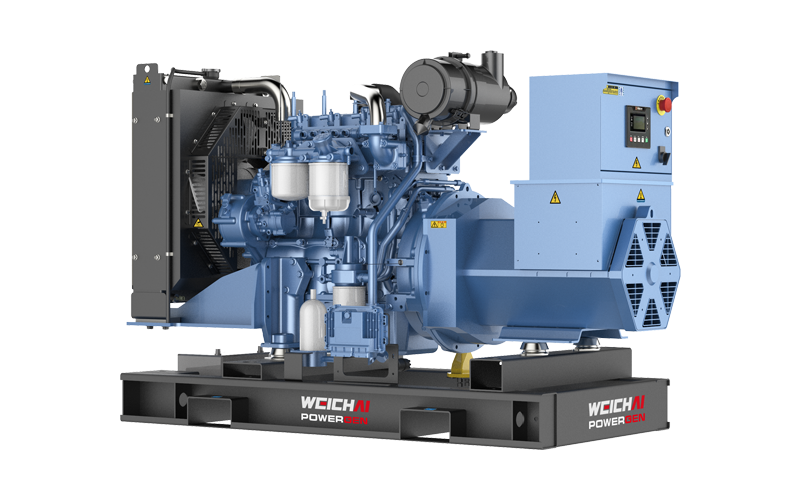

15 kVA-41 kVA Standard Land-based Generator Set Series

Suitable for telecommunications, industrial warehousing, and livestock farming applications.

12-33

功率范围/持续功率

Soundproofed

结构形式

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Energy & Power/Generator Set/Diesel/Stage IIIA

概述优势规格型谱表

产品概述

Residential and micro-commercial power supply, catering to low-power and high-portability needs for rural backup power, small shops, and outdoor camping.

产品优势

Superior Performance: Features industry-leading product performance indicators and an advanced unit security system

Multi-scenario Application: Professional generator set application integration capability, suitable for various application scenarios

Extended Maintenance Cycle : Exclusive triple-filter design, equipped with high-capacity batteries and large fuel tanks to ensure long-lasting endurance

Intelligent Control and Monitoring: Supports remote control functionality and features anti-theft alarms and intelligent monitoring to ensure the safe and reliable operation of the equipment

产品规格

功率范围kWe

12-33

产品系列

燃料

Diesel

发动机型式

Inline

气缸数

缸径 × 行程mm

排量 L

3.17

机组尺寸（敞开式）mm

2260 × 860 × 1200 (Soundproofed)

重量（开式）kg

950 (Soundproofed)

结构形式

Soundproofed

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Genset Model	Rated speed (rpm)	Standby Power (kVA/kW)	Prime Power (kVA/kW)	Baudouin Engine Model	Cylinders	Bore × Stroke (mm)	Governing System	Emission standard
WPG17L1	1500	17/14	15/12	4M08G2D3/5	4	98×105	Electronic control	Stage IIIA
WPG22L1	1500	22/18	20/16	4M08G4D3/5	4	98×105	Electronic control	Stage IIIA
WPG28L1	1500	28/22	25/20	4M08G6D3/5	4	98×105	Electronic control	Stage IIIA
WPG33L1	1500	33/26	30/24	4M08G8D3/5	4	98×105	Electronic control	Stage IIIA
WPG41L1	1500	41/33	38/30	4M08G10D3/5	4	98×105	Electronic control	Stage IIIA
